At Helical Piling, we provide advanced foundation systems for residential and commercial projects across the UK. Helical piling delivers a strong, efficient solution for supporting structures where traditional foundations are restricted by soil conditions, limited access, or complex load requirements.

Our work supports residential extensions, commercial developments, infrastructure stabilisation, and subsidence-related foundation upgrades. With an emphasis on precision installation, engineered design, and long-term structural performance, our piling solutions are designed to perform reliably within varied ground conditions and environmental constraints.

How Is Helical Piling Used for Construction Projects?

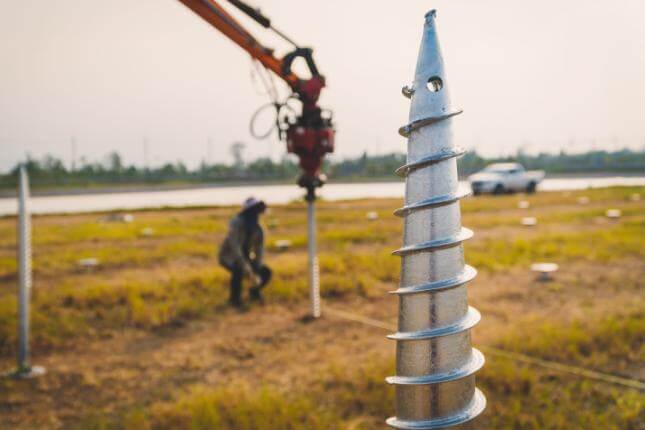

Helical piling is a foundation method that involves rotating steel piles with helical plates into the ground until they reach load-bearing strata. These piles transfer structural loads efficiently without the need for excavation or curing time.

Helical piling is commonly used for new builds on weak or variable soils, strengthening existing foundations, and supporting modular or lightweight structures. The system is particularly effective on restricted-access sites, sloping ground, and areas affected by subsidence.

What Ground Conditions Make Helical Piling Effective?

Helical piling is particularly well suited to the ground conditions commonly found, with key factors including:

• Clay and shrinkable soils – Provides stable load transfer below active soil zones affected by moisture changes.
• Loose or made ground – Bypasses weak surface layers to reach competent strata at depth.
• High water tables – Eliminates the need for open excavation in saturated ground.
• Restricted access sites – Installed using compact machinery where traditional piling is impractical.
• Environmentally sensitive areas – Minimises vibration, noise, and ground disturbance.

How Much Does Helical Piling Cost?

The cost of helical piling ranges from £250 to £600 per pile for residential projects, while larger commercial or structural schemes range from £10,000 to £100,000 or more, depending on scale and design requirements.

Costs are primarily influenced by pile diameter and depth, soil resistance, access conditions, structural load calculations, and whether engineering design, load testing, or certification is included as part of the service.

Contact Helical Piling to get customised prices for helical piling at your property.

Do Helical Piling Contractors Provide Design and Load Testing?

Professional helical piling contractors provide full design and engineering support as part of the service. This includes load calculations, soil assessment input, and pile layout planning.

Load verification is carried out during installation using torque correlation or formal proof load testing, ensuring each pile meets specified vertical and lateral load requirements and settlement tolerances.

What Engineering Standards Apply to Helical Piling?

Helical piling is designed and installed in accordance with recognised UK standards, including Eurocode 7 (Geotechnical Design) and BS EN 1997.

Installations are typically carried out under structural engineer guidance, with torque logs, depth records, and load verification data provided on completion. Contractors commonly operate under ISO-certified management systems and relevant health and safety accreditations.

Is Helical Piling Suitable for Residential and Commercial Foundations?

Helical piling is widely used across both residential and commercial sectors. Homeowners commonly use helical piling for extensions, conservatories, garages, and foundation reinforcement where ground movement or tree root influence is present.

Commercial and industrial applications include underpinning, retaining structures, signage bases, basements, and developments on brownfield or flood-risk sites.

How Long Does Helical Piling Installation Take?

The installation timeframe for helical piling for most residential projects can be within 1 to 3 days, while larger commercial installations typically take between 1 and 2 weeks.

As helical piles require no curing time, construction can continue immediately after installation, reducing overall project duration.

What Are the Indicators That a Property May Need Helical Piling?

Properties may be suitable for helical piling where signs of foundation stress or instability are present, including:

• Diagonal or stepped wall cracking—often linked to uneven foundation movement.
• Uneven or sinking floors—indicate loss of bearing capacity beneath the structure.
• Sticking doors and windows—caused by frame distortion from settlement.
• Visible external settlement—depressions or movement around foundations.
• Sites with known ground instability—including infilled land or historic excavation areas.

Are Planning or Building Regulations Required for Helical Piling?

While helical piling services itself may not require standalone planning permission, it usually forms part of approved structural works.

Building regulations approval is required to confirm foundation performance and safety. Helical piling contractors provide engineering calculations, installation logs, and test data to support compliance during inspections.

Can Helical Piling Be Used for Subsidence Repairs?

Helical piling is a proven solution for subsidence repairs. When installed beneath existing foundations, the piles transfer structural loads to stable ground and can be used to re-level and permanently support the building.

This approach allows subsidence remediation with minimal excavation, making it suitable for occupied properties where disruption must be kept to a minimum.

Contact Helical Piling for expert advice and a professional review of your foundation requirements.
